General Purpose Strain Gages—Linear PatternGeneral Purpose Strain Gages—Linear Pattern
GAGE PATTERN DATA
GAGE RESISTANCE OPTIONS
DESIGNATION (OHMS) AVAILABLE
See Note 1, 3 See Note 2 See Note 3

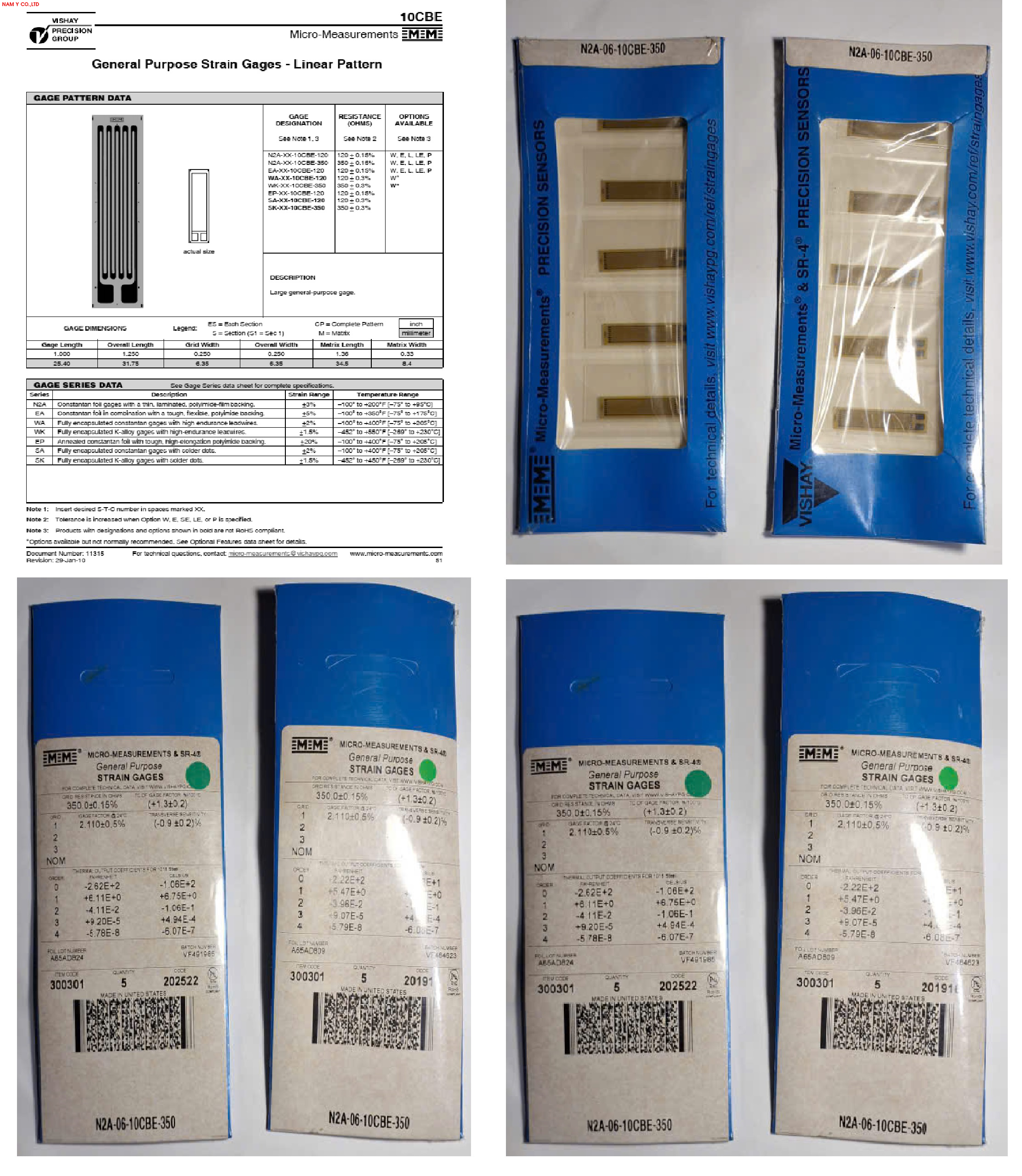

N2A-XX-10CBE-120 120 ±0.15% W, E, L, LE, P
N2A-XX-10CBE-350 350 ±0.15% W, E, L, LE, P
EA-XX-10CBE-120 120 ±0.15% W, E, L, LE, P
WA-XX-10CBE-120 120 ±0.3% W*
WK-XX-10CBE-350 350 ±0.3% W*, SP35*
EP-XX-10CBE-120 120 ±0.15%
SA-XX-10CBE-120 120 ±0.3%
SK-XX-10CBE-350 350 ±0.3%
actual size
DESCRIPTION
Large general-purpose gage.
Legend inch
GAGE DIMENSIONS ES = Each Section CP = Complete Pattern
S = Section (S1 = Section 1) M = Matrix millimeter
Gage Length Overall Length Grid Width Overall Width Matrix Length Matrix Width
1.000 1.250 0.250 0.250 1.36 0.33
25.40 31.75 6.35 6.35 34.5 8.4
GAGE SERIES DATA — See Gage Series datasheet for complete specifications
Series Description Strain Range Temperature Range
N2A Constantan foil gages with a thin, laminated, polyimide-film backing. ±3% –100° to +200°F (–75° to +95°C)
EA Constantan foil in combination with a tough, flexible, polyimide backing. ±5% –100° to +350°F (–75° to +175°C)
WA Fully encapsulated constantan gages with high-endurance leadwires. ±2% –100° to +400°F (–75° to +205°)
WK Fully encapsulated K-alloy gages with high-endurance leadwires. ±1.5% –452° to +550°F (–269° to +290°C)
EP Annealed constantan foil with tough, high-elongation polyimide backing. ±20% –100° to +400°F (–75° to +205°C)
SA Fully encapsulated constantan gages with solder dots. ±2% –100° to +400°F (–75° to +205°C)
SK Fully encapsulated K-alloy gages with solder dots. ±1.5% –452° to +450°F (–269° to +230°C)
Note 1: Insert desired S-T-C number in spaces marked XX.
Note 2: Tolerance is increased when Option W, E, SE, LE, P, or SP35 is specified.
Note 3: Products with designations and options shown in bold are not RoHS compliant.
*Options available but not normally recommended. See Optional Features datasheet for details.
